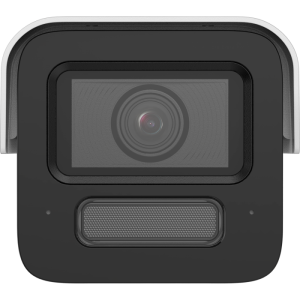

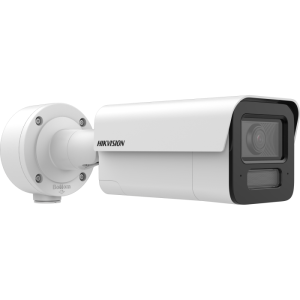

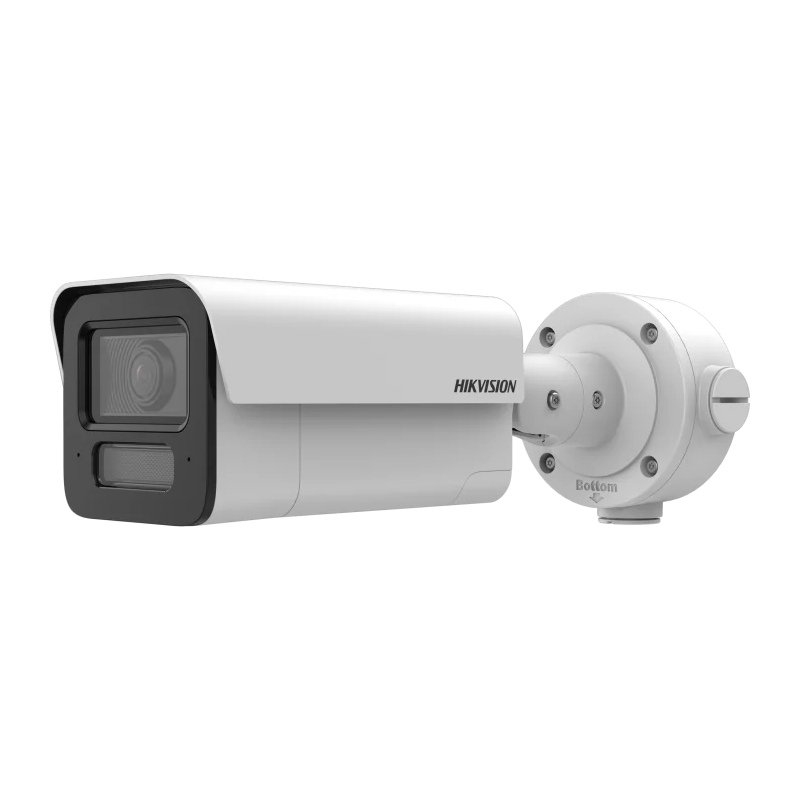

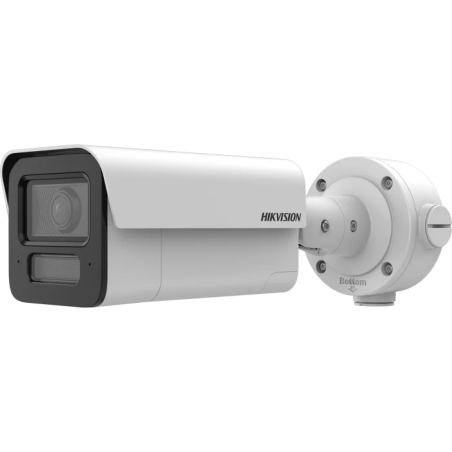

IP camera iDS-2CD5T47G2/V-XHSY 2.8mm 4MP tube white

Basic Information

Brand: Hikvision
Manufacturer Code: iDS-2CD5T47G2/V-XHSY (2.8 mm)
Net Weight: 1.37 kg
Gross Weight: 2.084 kg

Key Parameters

Case Type: Bullet
Resolution: 4 MP
Lens Type: Fixed Lens
Low-Light Technology: Darkfighter S
Illumination Distance: up to 80 m
Storage Type: SD Card
AI: AcuSeek, Perimeter Protection, Metadata
Supplement Light: Smart Hybrid Light, IR Light, White Light

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS

Minimum Illumination:
Color: 0.0014 Lux @ (F1.0, AGC ON)
B/W: 0.0005 Lux @ (F1.0, AGC ON)
0 Lux with IR

Day/Night: IR cut filter

WDR: 120 dB

Lens

2.8 mm – horizontal 104°, vertical 54°, diagonal 127°
4 mm – horizontal 89°, vertical 46°, diagonal 108°

Iris Type: Fixed

Illuminator

Type: IR and White Light
Range: up to 80 m
Smart Supplement Light: Yes

Video

Bit Rate: 32 Kbps – 8 Mbps

Main Stream:
50 Hz: 25 fps (2688×1520, 2560×1440, 1920×1080, 1280×720)
60 Hz: 30 fps (same resolutions)

Bit Rate Control: CBR, VBR

Network

Simultaneous Live View: up to 20 channels
Users: up to 32 (administrator, operator, user)
Client: iVMS-4200, Hik-Connect, Hik-Central

Audio

Built-in microphone and speaker

Storage

microSD up to 1 TB

Protection

IP67
IK10

Power

PoE or 12 VDC

Dimensions

323.4 mm × 114.5 mm × 114.5 mm
