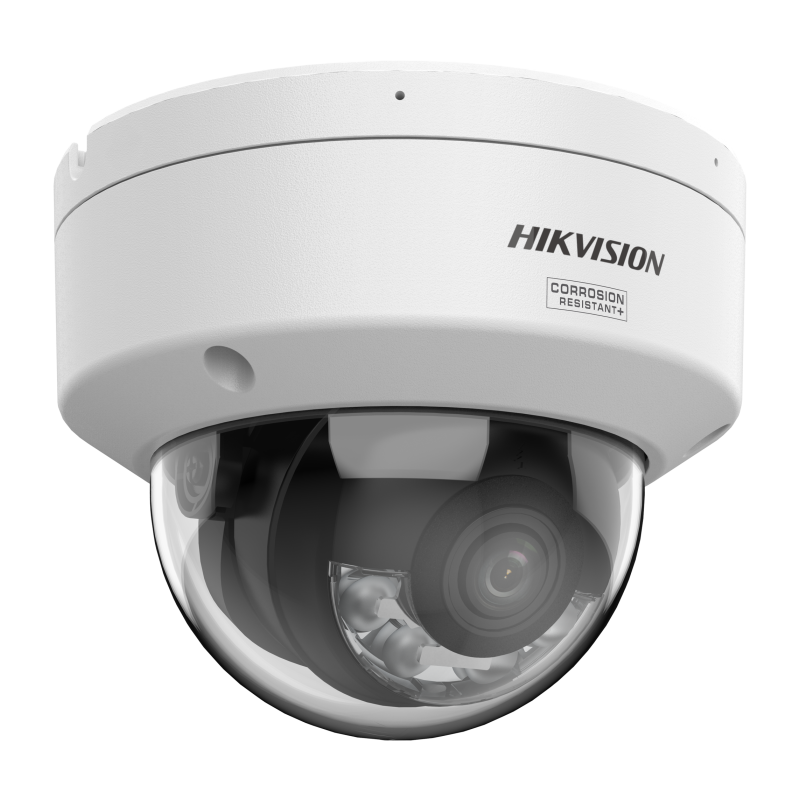

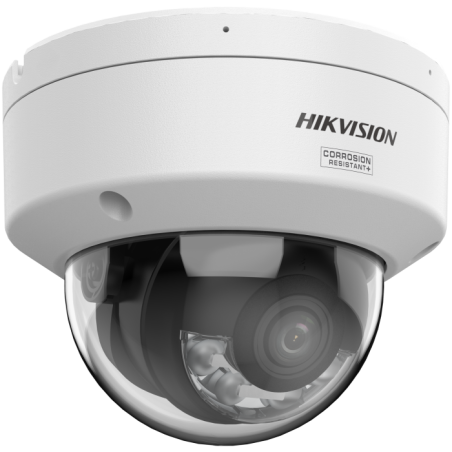

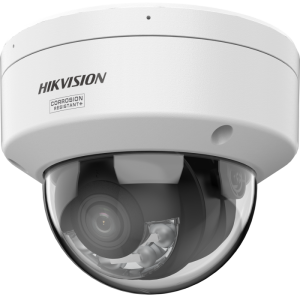

IP camera DS-2CD2187G3-LIY 8MP 2.8mm mini dome white

Basic Information

Brand: Hikvision
Manufacturer Code: DS-2CD2187G3-LIY (2.8 mm)
Net Weight: 0.595 kg
Gross Weight: 0.876 kg

Key Parameters

Case Type: Dome
Resolution: 8 MP
Lens Type: Fixed Lens
Low-Light Imaging: ColorVu
Illumination Distance: 21–50 m
Storage Type: SD Card
AI: AcuSeek, Face Capture, Perimeter Protection
Supplement Light: Smart Hybrid Light, IR Light, White Light

Camera

Image Sensor: 1/1.8" Progressive Scan CMOS

Minimum Illumination:
Color: 0.0005 Lux @ (F1.0, AGC ON)
0 Lux with light

Day/Night: IR cut filter

Angle Adjustment:
Pan: 0°–355°
Tilt: 0°–75°
Rotate: 0°–355°

WDR: 130 dB

Lens

2.8 mm – horizontal 108.8°, vertical 56.4°, diagonal 134.3°
4 mm – horizontal 93.3°, vertical 47.2°, diagonal 114.2°

Iris Type: Fixed

Depth of Field:
2.8 mm: 3.3 m – ∞
4 mm: 3.8 m – ∞

Illuminator

Type: IR and White Light
Range: up to 30 m
Smart Supplement Light: Yes

Video

Bit Rate: 32 Kbps – 16 Mbps

Main Stream:
50 Hz: 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
60 Hz: 30 fps (same resolutions)

Bit Rate Control: CBR, VBR

Network

Simultaneous Live View: up to 6 channels
Users: up to 32
Client: iVMS-4200, Hik-Connect, Hik-Central

Audio

Built-in dual microphone array
Audio input and output

Storage

microSD up to 512 GB

Smart Events

Face capture
Line crossing detection
Intrusion detection
Region entrance / exit detection
Motion detection (human and vehicle classification)

Protection

IP67
IK10
NEMA 4X

Power

PoE or 12 VDC

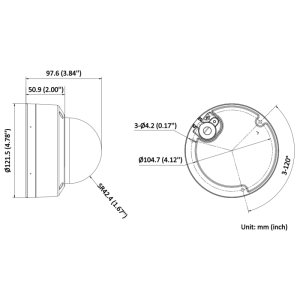

Dimensions

Ø121.5 mm × 97.6 mm
