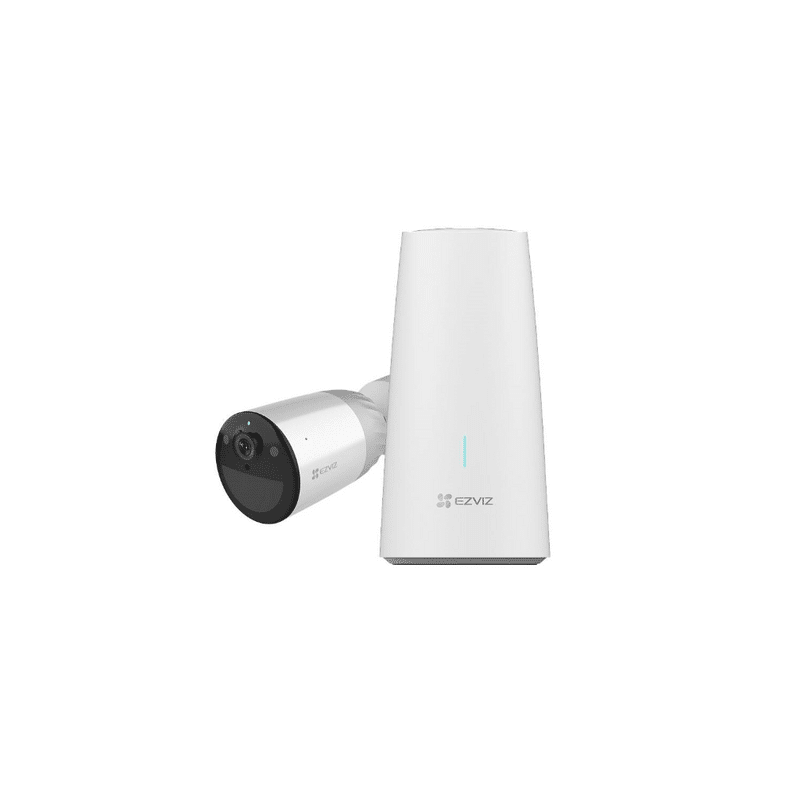

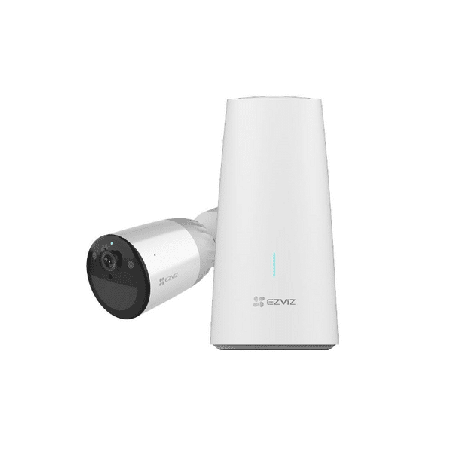

EZVIZ BC1 Battery Camera with Station

Specifications

Model CS-BC1-B1

System Parameters

Processor High-Performance Embedded SOC Processor

Operating System Linux

Camera Parameters

Image sensor 1/2.8” 2-Megapixel Progressive Scan CMOS Sensor

Lens 2.8 mm @ F1.6; 128° (Diagonal), 108° (Horizontal)

Lens Mount M12

Night Vision IR Distance:10m, IR-cut filter with auto-switching

Video Parameters

Video Compression H.265

Max. Resolution FHD 1920 x 1080

Frame Rate 15fps. Self-Adaptive during network transmission

DNR 3D DNR

WDR DWDR

Audio Parameters

Audio Input Built-in omnidirectional microphone

Audio Output Built-in loudspeaker

Audio Quality Noise suppression

Camera Event

Sensor PIR Motion Detection Sensor

Alarm Customized Alert Area

Siren 105 dB built-in siren

Camera Network Parameters and Storage

Wireless Built-in 2.4G Wi-Fi

Network Configuration AP Pairing

Minimum Network Requirement 1Mbp

Local Storage Support MicroSD card up to 256 GB in Base Station

Cloud Storage EZVIZ Cloud Storage

Base Station Parameters

Camera pairing Support up to 4 BC1 cameras

Buttons 1 SYNC button; 1 POWER button; 1 RESET button (hold 5 seconds to RESET)

Siren 125 dB built-in siren

Local Storage MicroSD card slot on the base station (up to 256 GB)

Antenna 2.4G: 2 internal @ 3dB

Indicator RGB 3 LED Indicator; 1 network Indicator

USB Do not support

Network Interface 1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface.

Wireless Interface Support 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n.

Power 12V/1A typical power consumption < 12watts; The adapter supports a wide voltage range from 100V~240V

General

Operating Conditions -20°C to 45°C (-4°F to 113 °F), Humidity 95% or less (non-condensing)

Power Supply 12900mAh Rechargeable Lithium Battery or 5V DC

Power Consumption Max. 5W

IP Grade IP 66

Dimensions Camera: 104.76 x 62.80 x 62.80 mm (4.12 x 2.47 x 2.47 inch)

Base: 81.97 x 63.97 x 160.22 mm (3.23 x 2.52 x 6.31 inch)

Packaging Dimensions 260.00 x 217.00 x 180.00 mm (10.24 x 8.54 x 7.09 inch)

Weight 1304 g (46 oz)
