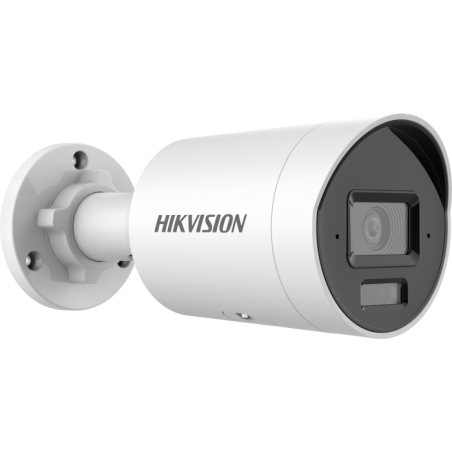

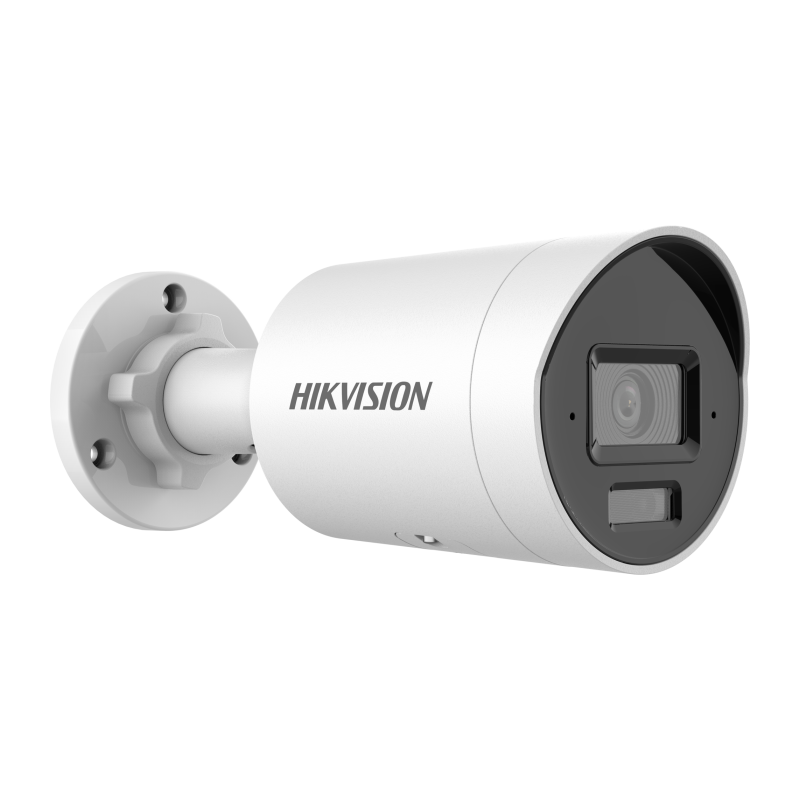

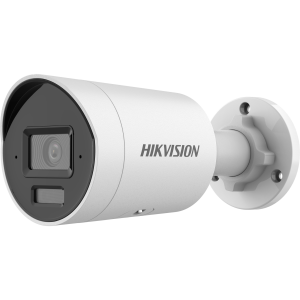

IP camera DS-2CD2083G2-LI2U 2.8mm 8MP tube white

Basic Information

Brand: Hikvision
Manufacturer Code: DS-2CD2083G2-LI2U (2.8 mm)
Net Weight: 0.505 kg
Gross Weight: 0.748 kg

Key Parameters

Case Type: Bullet
Resolution: 8 MP
Lens Type: Fixed Lens
Low-Light Imaging: Normal
Illumination Distance: 21–50 m
Storage Type: SD Card
AI: AcuSeek, Perimeter Protection
Supplement Light: Smart Supplement Light (IR and White Light)

Camera

Image Sensor: 1/2.8" Progressive Scan CMOS

Minimum Illumination:
Color: 0.005 Lux @ (F1.6, AGC ON)
0 Lux with IR

Day/Night: IR cut filter

Angle Adjustment:
Pan: 0°–360°
Tilt: 0°–90°
Rotate: 0°–360°

WDR: 120 dB

Lens

2.8 mm – horizontal 108°, vertical 59°, diagonal 127°
4 mm – horizontal 88°, vertical 44°, diagonal 105°
6 mm – horizontal 54°, vertical 29°, diagonal 63°

Iris Type: Fixed

Depth of Field:
2.8 mm: 1.7 m – ∞
4 mm: 2.6 m – ∞
6 mm: 5.8 m – ∞

Illuminator

Type: IR and White Light
Range: up to 40 m
Smart Supplement Light: Yes

Video

Bit Rate: 32 Kbps – 16 Mbps

Main Stream:
50 Hz: 20 fps (3840×2160)
25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
60 Hz: 20 fps (3840×2160)
30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)

Bit Rate Control: CBR, VBR

Network

Simultaneous Live View: up to 6 channels
Users: up to 32
Client: iVMS-4200, Hik-Connect, Hik-Central

Audio

Built-in dual microphone array

Storage

microSD up to 512 GB

Smart Events

Unattended baggage detection
Object removal detection
Face detection
Line crossing detection
Intrusion detection
Region entrance/exit detection
Motion detection (human and vehicle classification)

Protection

IP67

Power

PoE or 12 VDC

Dimensions

Ø74.4 mm × 176.3 mm
