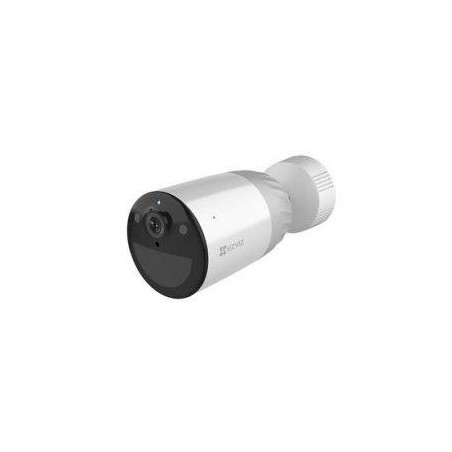

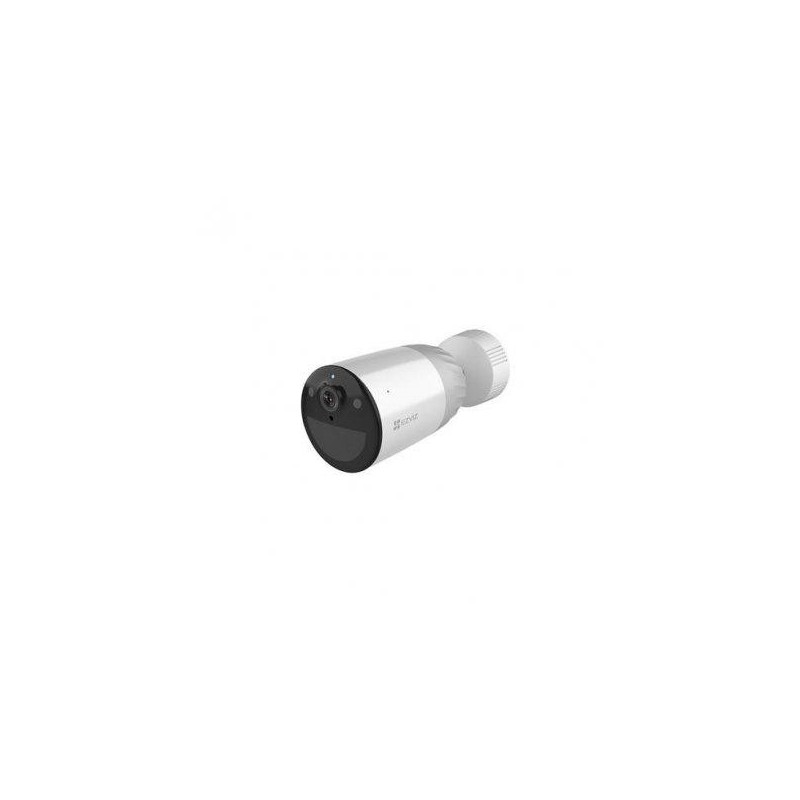

EZVIZ BC1 battery-powered camera without a base

Model

CS-BC1-B1

System Parameters

Processor

High-Performance Embedded SOC Processor

Operating System

Linux

Camera Parameters

Image sensor

1/2.8” 2-Megapixel Progressive Scan CMOS Sensor

Lens

2.8 mm @ F1.6; 128° (Diagonal), 108° (Horizontal)

Lens Mount

M12

Night Vision

IR Distance:10m, IR-cut filter with auto-switching

Video Parameters

Video Compression

H.265

Max. Resolution

FHD 1920 x 1080

Frame Rate

15fps. Self-Adaptive during network transmission

DNR

3D DNR

WDR

DWDR

Audio Parameters

Audio Input

Built-in omnidirectional microphone

Audio Output

Built-in loudspeaker

Audio Quality

Noise suppression

Camera Event

Sensor

PIR Motion Detection Sensor

Alarm

Customized Alert Area

Siren

105 dB built-in siren

Camera Network Parameters and Storage

Wireless

Built-in 2.4G Wi-Fi

Network Configuration

AP Pairing

Minimum Network Requirement

1Mbp

Local Storage

Support MicroSD card up to 256 GB in Base Station

Cloud Storage

EZVIZ Cloud Storage

Base Station Parameters

Camera pairing

Support up to 4 BC1 cameras

Buttons

1 SYNC button; 1 POWER button; 1 RESET button (hold 5 seconds to RESET)

Siren

125 dB built-in siren

Local Storage

MicroSD card slot on the base station (up to 256 GB)

Antenna

2.4G: 2 internal @ 3dB

Indicator

RGB 3 LED Indicator; 1 network Indicator

USB

Do not support

Network Interface

1 RJ-45 10/100Mbps Self-adaptive Ethernet WAN interface.

Wireless Interface

Support 2.4G connection. The actual available channels vary according to the sales area regulations. Theoretical maximum rate is 144M at 802.11b/g/n.

Power

12V/1A typical power consumption < 12watts; The adapter supports a wide voltage range from 100V~240V

General

Operating Conditions

-20°C to 45°C (-4°F to 113 °F), Humidity 95% or less (non-condensing)

Power Supply

12900mAh Rechargeable Lithium Battery or 5V DC

Power Consumption

Max. 5W

IP Grade

IP 66

Dimensions

Camera: 104.76 x 62.80 x 62.80 mm (4.12 x 2.47 x 2.47 inch)

Base: 81.97 x 63.97 x 160.22 mm (3.23 x 2.52 x 6.31 inch)

Packaging Dimensions

260.00 x 217.00 x 180.00 mm (10.24 x 8.54 x 7.09 inch)

Weight

1304 g (46 oz)
